TMVOC

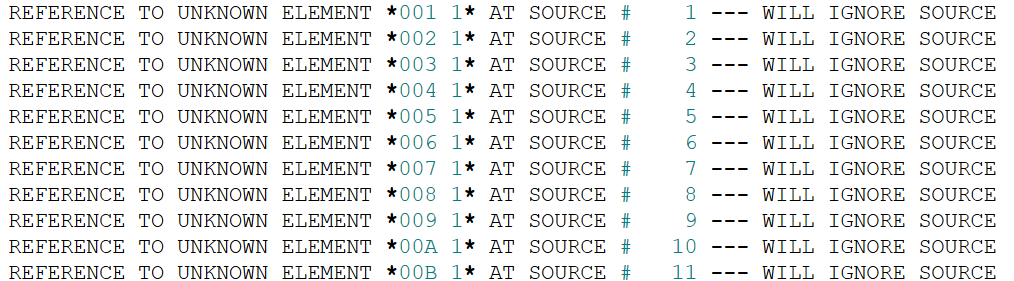

Hello everyone, I am currently working on a three-dimensional model simulating the initial state of water flow. However, after setting it up, the results indicate that my source and sink terms are being ignored. Can anyone tell me why this is happening? Thank you all.
6 replies
-
Hello,
Probably is just a problem of your blocknames: in the input file, under GENER, you have "00101", while in the output you have "001 1" (missing one zero). Also, you didn't share the ELEME section, so I don't know how they are named. I suggest renaming blocknames or in ELEME and CONNE sections or in the GENER section. This is a typical problem of the A3I2 blockname Fortran format, which in some subroutine has been changed...Regards
Stefano
-
Dear Stefano_Bondua.Thank you for your reply. I just made changes to the rain layer, but after running it, the GENER item still does not appear to be in effect. Here are the relevant files.Could you please indicate the reason? Once again, I sincerely thank you.
-
@Stefano_Bondua, thank you for your help. After using the modified MESH file you provided, the previous issue still occurs. I'm wondering if it's due to formatting, but even after making changes, I still can't achieve the correct result.I'm sorry for replying to you late.
Regards
-
-
Probably I modified the wrong element. Try with this new attached incon and mesh files and let me know...at least the element "002 2" will be a valid GENER... Also you have to modify the name in the INCON file, attached..
